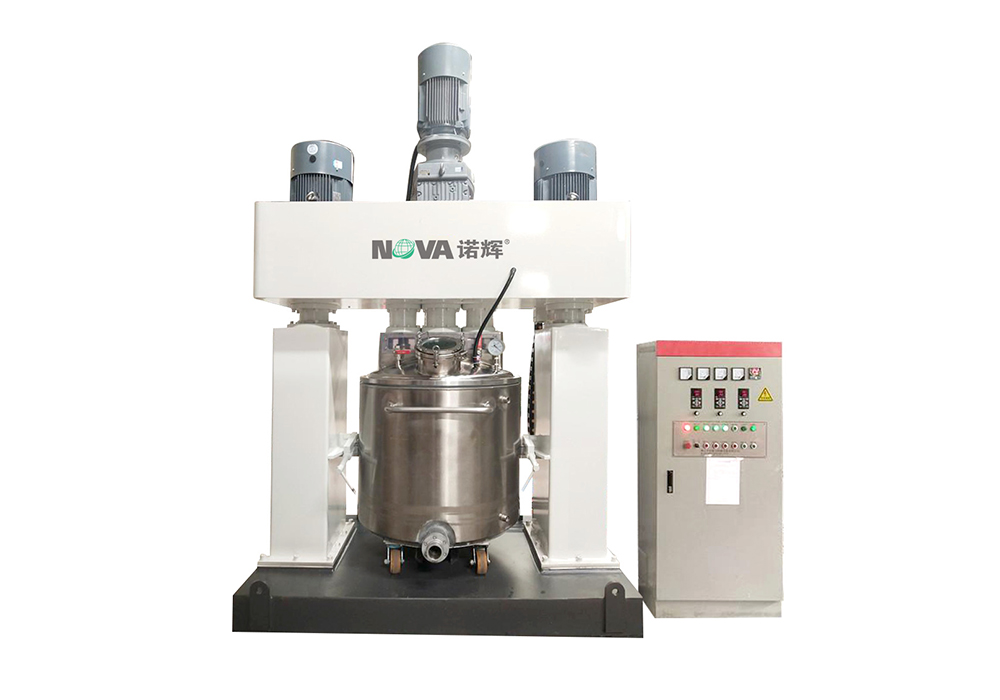

novasara@novachn.cnThe multi-function strong dispersion machine is a kind of high and low speed combination, strong dispersion mixing and stirring equipment, which is is applicable to the mixing, reaction, vulcanization, dissolution, dispersion and other processes of solid liquid, liquid liquid phase materials in chemical industry, light industry, food, pharmacy, building materials, pesticide and other industries. Single speed, double speed and variable speed are available, and materials with viscosity range of 10000CPS~200000CPS are used.
Model |
Cylinder Volume |
Feeding Volume |
Motor Power |
Dispersing Speed |
Stirred Speed |
Vacuum Degree |
|
L |
L |
KW |
rpm |
rpm |
MPa |
NDSF-300 |
300 |
180 |
11×3 |
0~1440×2 |
33 |
-0.098 |
NDSF-500 |
500 |
300 |
15×3 |
0~1440×2 |
33 |
-0.098 |
NDSF-1000 |
1000 |
600 |
30×3 |
0~980×2 |
23 |
-0.098 |
NDSF-2000 |
2000 |
1200 |
37×3 |
0~980×2 |
23 |
-0.098 |
NDSF-5000 |
5000 |
3000 |
55×3 |
0~980×2 |
23 |
-0.098 |
It is mainly applicable to the production of adhesives, silicone sealants, polyurethane adhesives, acrylic acid adhesives, automobile sealants, and encapsulation adhesives, ointments and paste materials, lubricating grease and paints, paste cosmetics, inks and pigments, emulsions, paste foods and additives.
Applicable fields:Other fine chemical industry, Adhesive agent , Ink/dye , Electronic chemicals, Coating
