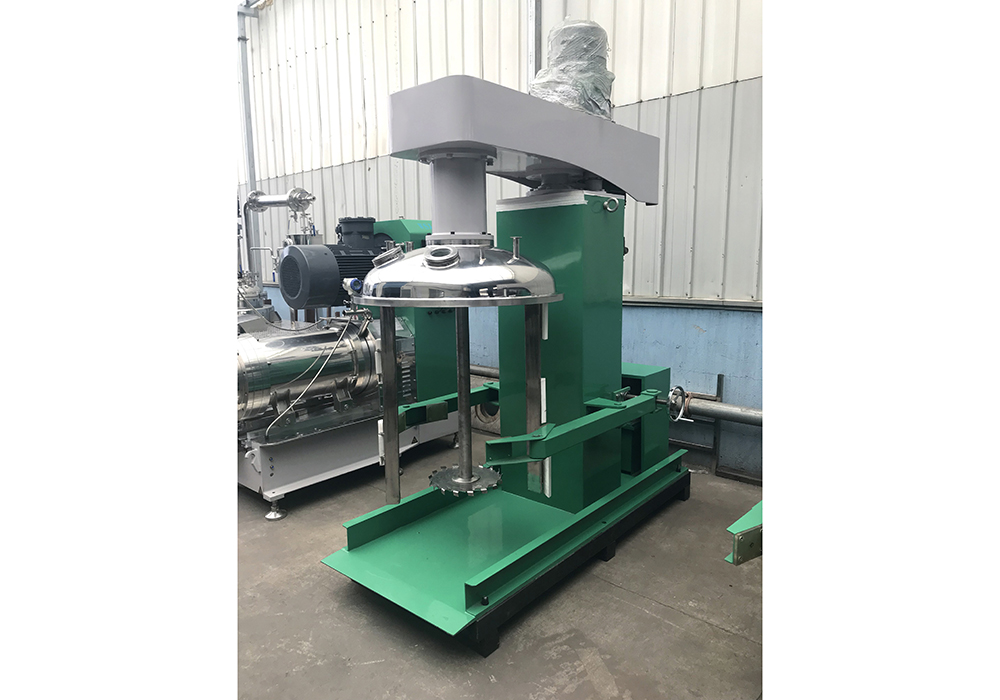

Coaxial dispersion mixer is a functional machine developed based on the high-speed disperser. A closed lid, with spring seal ring mounted in a milling groove of the cover flange, is completely closed with tank and ensures no air leakage under vacuum operation surroundings. It can ensure that the equipment has no leakage under closed vacuum. It can be equipped with vacuum pump or pump set, and the limit vacuum degree can reach -0.0998 mpa (20 mbar), which is suitable for dispersion mixing under special working conditions such as "vacuum deaeration", "vacuum feeding" and "inert gas protection".

Product Characteristics

1.Variable frequency speed regulation, operating easily;

2.Hydraulic lifting systemwithstable operation;

3.The closed type bucket cover effectively avoids the solvent volatilization; The view mirror and the searchlight can observe the mixing state.Sanitary manhole can be cleaned and add materials;

4.It can be made as a floor type or platform type and the cylinder body can be designed as movable and fixed type.

5.Explosion proof type, coaxial/dual axis composite type, one machine with multiple cylinders, SS304/SS321/SS316, etc. can be customized.

Working Principle

The dispersing disc is running at high speed so that the material is in a circular flow, resulting in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear impact and friction are generated between particles to achieve rapid dispersion and dissolution. The PTFE wall scraper rotates to fit the barrel wall and scrapes the barrel wall, solving the problem of wall hanging of materials and speeding up the circulation of materials. The hydraulic plunger is driven up and down by the hydraulic pump, driving the whole transmission mechanism and working group up and down.

Technical Parameters

Product Application

It is applicable to all kinds of slurry, such as latex paint, industrial paint, water-based ink and colorant, lithium battery paste, etc.
