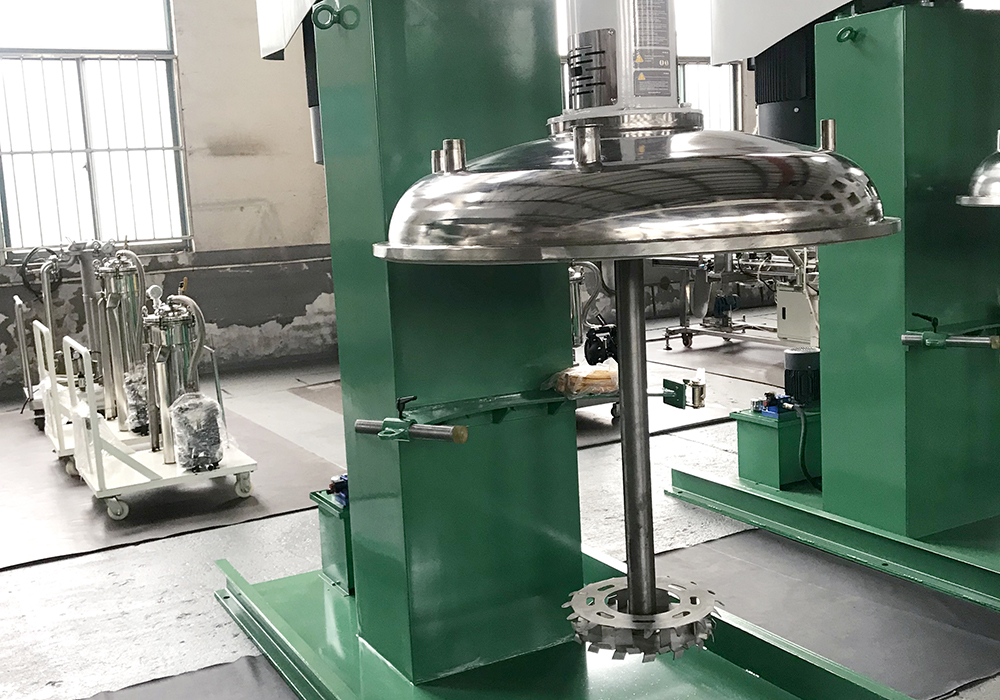

It mainly focuses on shattering, dispersing, emulsifying and mixing different viscosity of slurry liquid. Through the high-speed operation of the upper and lower serrations of the dispersion disk, the materials can be sheared, impacted, crushed and dispersed at high speed to achieve the functions of rapid mixing, dispersion and refinement.

Product Characteristics

1.This machine is suitable for industrialbatchproduction;

2.Hydraulic lifting system is stable and convenient; firm and durable structure;

3.Closed design, reducing solvent volatilization, reducing material loss, saving environmental protection;

4.Temperature, pressure and other display instruments.

Working Principle

The toothing shaped circular dispersion discs disperse in the container at high speed to complete the solid-liquid dispersion, wetting, depolymerization and stabilization processes. The slurry is in a rolling annular flow, generating a strong vortex, and the particles on the blade surface fall to the bottom of the vortex in a spiral shape. The turbulent region was formed at the edge of the scattered disk 2.5 to 5mm. The slurry and particles were subjected to intense shear and shock. Two beams are formed outside the region, and the pulp is fully circulated and turned. The fluid at the bottom of the disperser is laminar flow, and the slurry layer of different flow rate disperses each other.

Technical Parameters

Product Application

It is widely used in coatings, inks, dyes, ink, paste, fine chemicals and other industries.

Applicable fields：Other fine chemical industry , Ink/dye, Flavors and Fragrances, Pesticides , Coating
