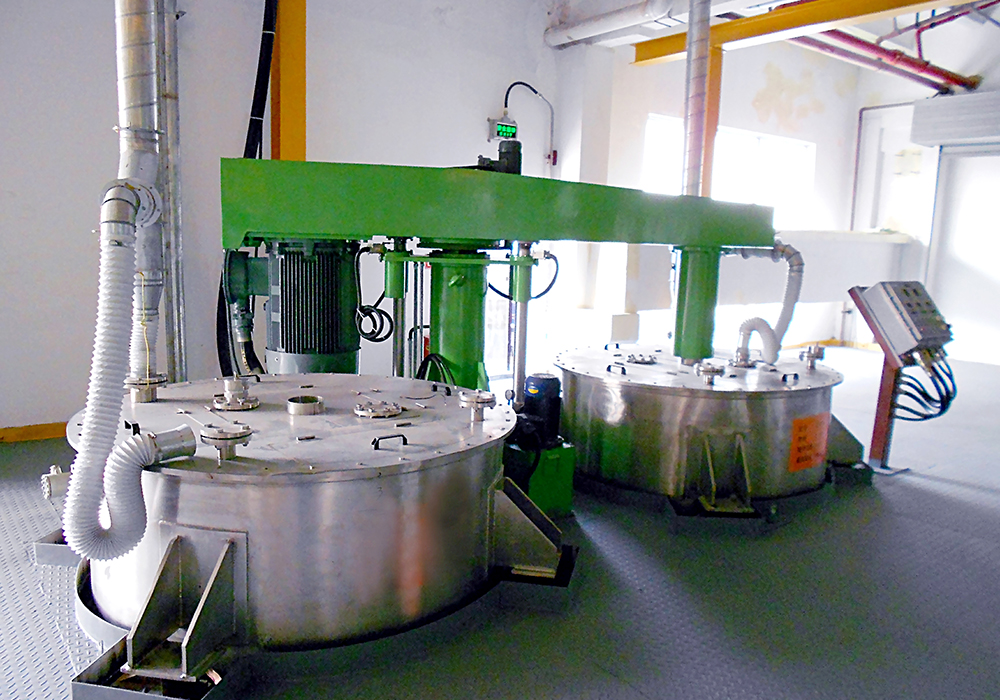

Multi-cylinder disperser has the functions of mixing and stirring liquid-liquid or powder-liquid.It belongs to mass production. And it can be supplemented by dispersing, emulsifying, heating and cooling to meet the needs of different production processes.  It can operate for a long time, with stable operation, low noise, simple operation and strong adaptability. It is an ideal multi-functional equipment for mixing, dispersing, etc.

Product Characteristics

1.It places on the platform and the distributed head is equipped with multiple containers without waiting for the feeding time to improve the efficiency of theequipment;

2.The dispersingdisccan be easily disassembled. Bolts are easy to move and remove;

3.Customizable explosion-proof type, SS304\SS316L stainless steel etc.

Working Principle

Through the high speed of the dispersing disk, the material presented as annular flow results in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear collision and friction between particles achieves the function of rapid dispersion, dissolving, mixing and emulsifying. Through the hydraulic pump driving hydraulic plunger lift, it drives the mechanism, working group, airtight cover lifting

Technical Parameters

Product Application

It is applicable to all kinds of slurry, such as latex paint, industrial paint, water-based ink and colorant, lithium battery paste, etc.

Applicable fields：Other fine chemical industry , Adhesive agent  , Ink/dye  , Coating
