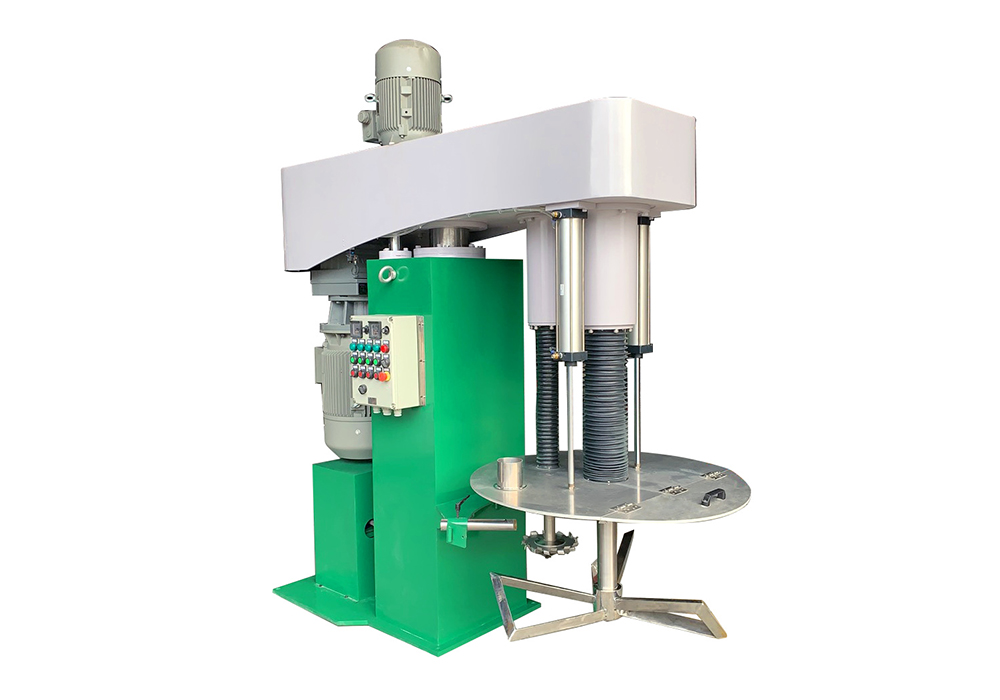

The butterfly dispersing mixer is a product which has the function of dispersing and stirring (scraping wall) based on the single shaft hydraulic lifting and dispersing machine. This product has good adaptability to medium high viscosity and thixotropic materials. Dispersion and mixing can be carried out at the same time, with strong adaptability. It can also be customized according to the customer's material characteristics and production process requirements.

Product Characteristics

1.Full stainless steel solid shaft;

2.Frequency converter speed regulation;

3.Hydraulic lifting systemwith stable operation;

4.A variety of work head can be chosen.It can be equipped according to the process demand;

5.We can customize various types of non-standard products, such as explosion-proof type, sealed vacuum type, etc.

Working Principle

The dispersing disc is running at high speed so that the material is in a circular flow, resulting in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear impact and friction are generated between particles to achieve rapid dispersion and dissolution. Butterfly dispersing mixer can produce better radial and axial, which accelerates the material circulation and improves the efficiency of scattered. Through the hydraulic pump driving hydraulic plunger lift, it drives the lifting of the transmission mechanism and the working party.

Technical Parameters

Product Application

It is suitable for dispersion and mixing of materials, such as coating, putty, ink, adhesive and lithium battery.

Applicable fields：Other fine chemical industry, Adhesive agent , Ink/dye, Electronic chemicals , Coating
