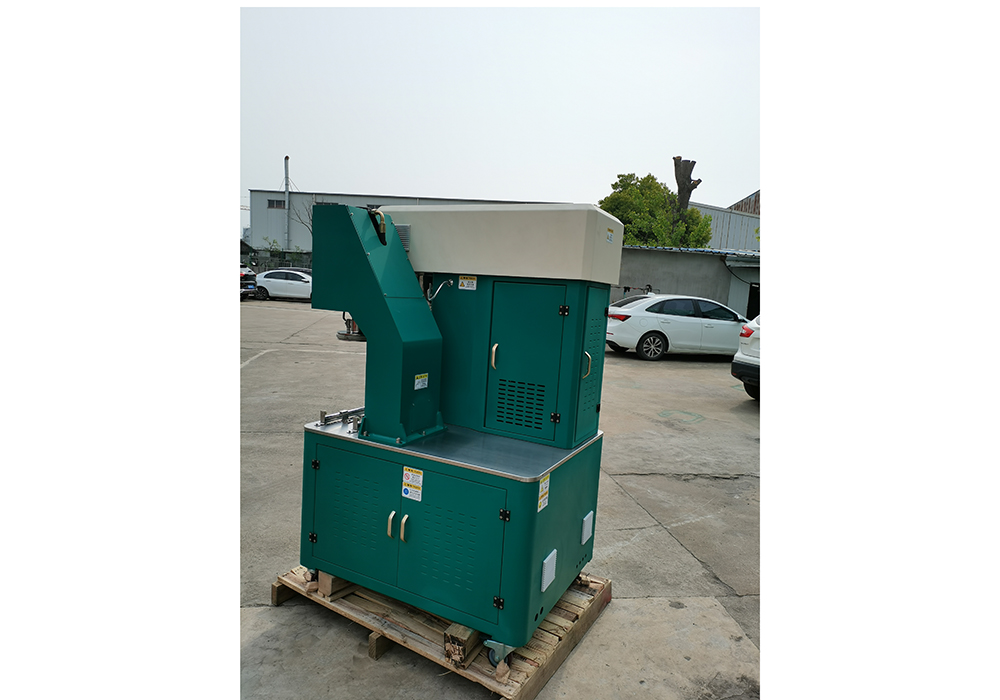

The lab planetary mixer is a new and efficient mixing equipment developed by NOVA for various universities, research institutes and factory laboratories. Lab planetary mixer is composed of low speed mixer and high speed disperser and has great effect on mixing, reaction, dispersion and dissolution. It is especially suitable for solid - liquid, liquid - liquid dispersion and mixing. Because of its great output torque, it is suitable for the viscosity of larger products, such as adhesive, silica gel, lithium battery slurry, etc. At the same time, the equipment has many advantages of the wall scraping function, no dead angle and no residual. The equipment is equipped with extruding device and sliding track.

Working Principle

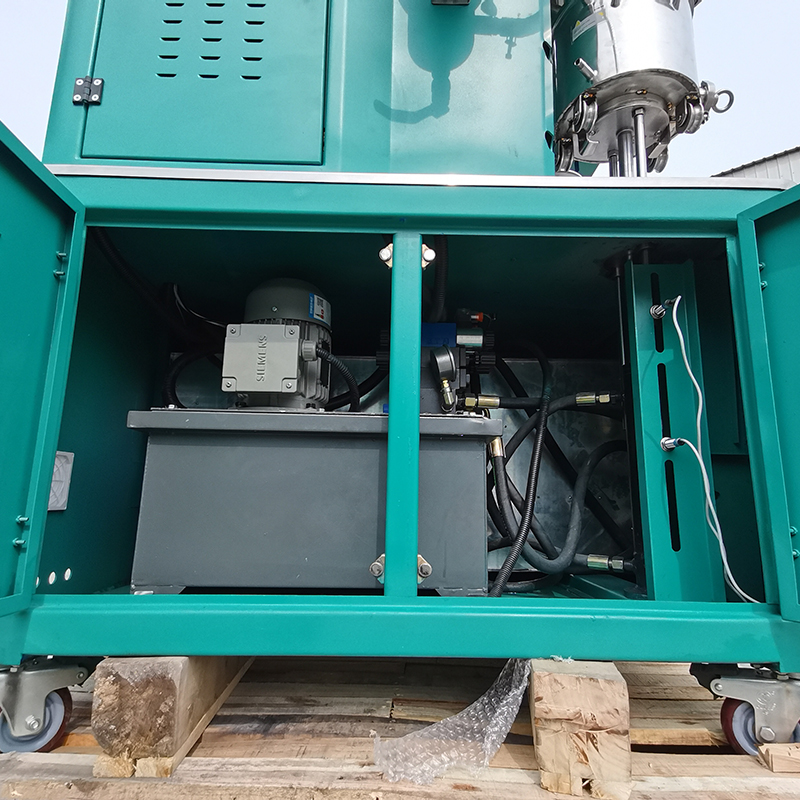

The lab planetary mixer is composed of gear motor, planetary frame, agitator, scraper, bucket, hydraulic lifting system, hydraulic extrusion system and frame. When the planetary frame is rotated, the stirring shaft and dispersion axis of the box (optional) are driven around the axis of the barrel axis and high-speed autobiographies, so that the material is strong shear, kneading, achieving the goal of fully dispersed and mixed. On the planet rack, there is a scraper that moves with the planetary frame. The wall of the barrel is constantly scraping. The wall of the barrel is refined by the big car, and then polished by automatic polishing machine.It ensures that the movable knife on the planet carrier can completely scrape off the materials on the barrel wall when rotating, so as to make the barrel wall free of retained materials and improve the mixing effect. After mixing, it is moved to the extrusion system through the slide rail to complete the extrusion discharge.

Technical Parameters

Product Application

It is suitable for dispersion, emulsification and mixing of paint, coating, putty, adhesive, ink, lithium battery paste, glue etc.

Applicable fields：Other fine chemical industry, Adhesive agent  ,Ink/dye  , Electronic chemicals  , Food addition
