The twin shaft mixer is a product with strong dispersion and mixing functions developed on the basis of hydraulic lifting single shaft mixer. It can be divided into independent twin shafts and concentric twin shafts according to whether the twin shafts are concentric. The product has good adaptability to medium and high viscosity and thixotropic materials. A variety of mixing methods are available, such as anchor type, butterfly type and frame type. Dispersion, emulsification and mixing can be carried out at the same time with strong adaptability, and non-standard customization can be carried out according to the customer's material characteristics and production process requirements.

Product Characteristics

1.Frequency converter speed regulation;

2.Hydraulic lifting systemwithstable operation;

3.It has the function of scraping the wall and the material is not sticky;

4.A variety of workingheadscan be chosen. It can be equipped according to the process demand;

5.Various types of non-standard products can be customized, such as explosion-proof, closed vacuum, heating, etc.

Working Principle

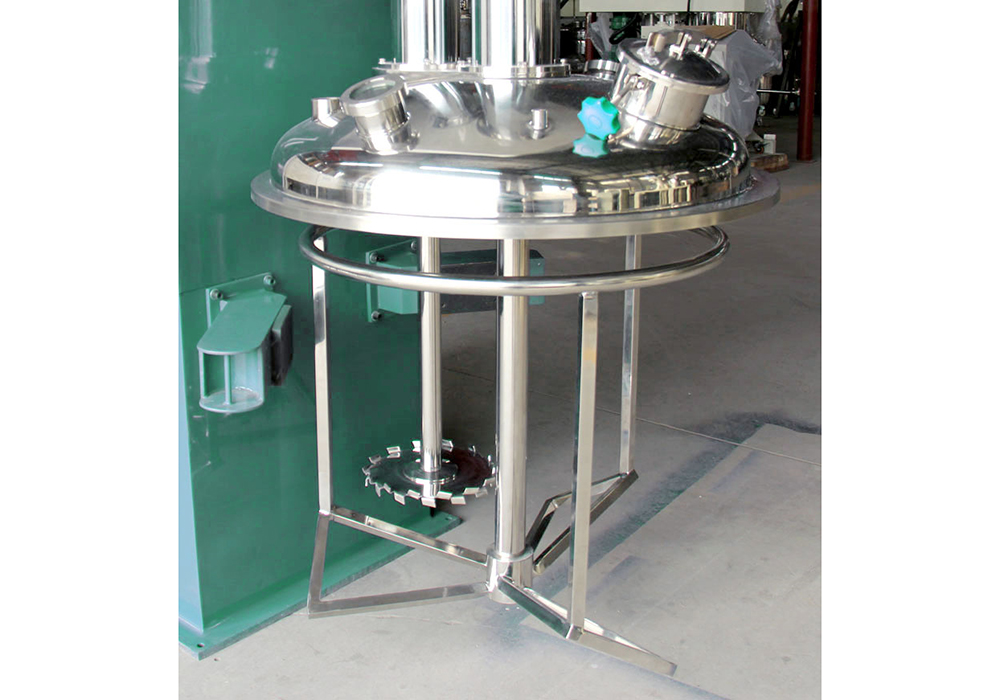

The paddle blade is driven by the power unit and rotated in a fixed direction. During the rotation, the material is driven to do axial rotation and radial rotation. The material in the mixer has axial movement and circular motion. Therefore, there are several stirring forms such as shear stirring and diffusion stirring, which is able to stir and mix materials quickly and effectively. Through the high speed of the dispersing disk, the material presented as annular flow results in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear collision and friction between particles achieves the function of rapid dispersion and dissolving. The stirring disc produces a good radial force through circumferential motion to accelerate material circulation and improve dispersion efficiency. Precision-engineered stator and rotor match with each other perfectly. High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator, rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.

Technical Parameters

Product Application

It is suitable for dispersion and mixing of paint, putty, ink, adhesive, lithium battery paste, glue and other materials.

Applicable fields：Other fine chemical industry, Adhesive agent, New materials , Ink/dye
