Double helix cone mixer is widely used in chemical, pesticide, dyestuff, food, battery material, rare earth and other powder mixed technology industry.

1. It has high standard requirements for mixing materials with no residue;

2.Soft mixing method does not destroy fragile materials such as crystal;

3.Low-energy mixing effect is more suitable for chemical reaction of materials;

4.The upper cover arc structure avoids hygienic clearance of dead Angle;

5.It is equipped with ball discharging valve and discharging material is more complete and stable.

Working Principle

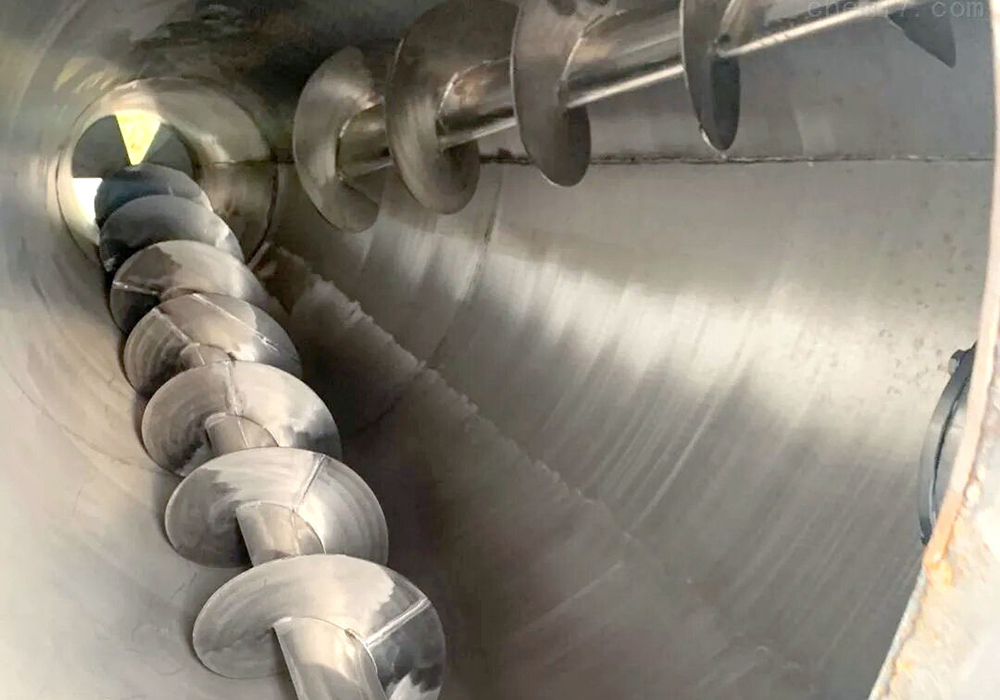

The double asymmetric spirals on the inner cantilever rotate on their axis. At the same time, they rotate the central axis of the cylinder to form a revolution. A double helix cone mixer can act as a force in four directions.

1.Two asymmetric spiral rotation, lifting material upward.

2.The cantilever slow revolution, and the material does circular motion.

3.The spiral rotation and rotation cooperate with each other. The material is absorbed by spiral rotation, and separated in the direction of the circumference.

4.The two streams of materials that are promoted to the highest level converge to the center, forming the downward flow in the center, filling the gap at the bottom, thus forming the overall circulation flow.

Technical Parameters

Product Application

It is widely used in chemical, pesticide, dyestuff, food, battery material, rare earth and other powder mixed technology industry.

Applicable fields: Other fine chemical industry, Adhesive agent, New materials, Solid powder , Ink/dye , Electronic chemicals
