Product Introduction

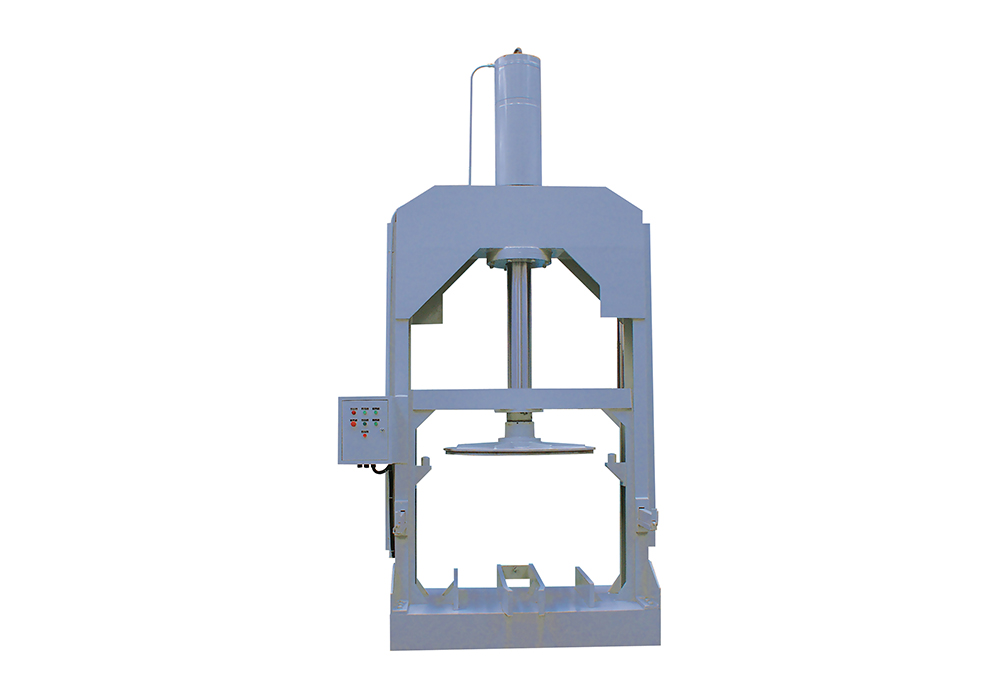

The extruder is generally used with the container so that the high viscosity material can be emptied from the container. Then we can measure, distribute and fill. The height of pressure plate can be adjusted. The pressure and pressure plate height can be adjusted, which can be selected in pneumatic and hydraulic modes. The discharging position can be connected with the metering device to realize the quantitative material, and the way to discharge material can be selected up or down.

Technical Parameters

Model	Disk Diameter	Pressure Per Unit Area	Design Pressure	Extrusion Stroke	Cylinder diameter	Lift
	mm	kg/cm2	T	mm	mm	mm
NNJC-2	180	12	3.1	250
NNJC-5	240	12	5.4	350
NNJC-10	310	12	9.1	400
NNJC-20	350	12	11.5	450
NNJC-30	400	12	15.1	500	80	200
NYJC-60	500	12	23.6	600	100	300
NYJC-100	596	12	33.5	700	120	300
NYJC-200	750	12	53.0	850	120	800
NYJC-300	836	12	65.8	1000	140	1000
NYJC-500	1000	12	94.2	1200	160	1200
NYJC-1000	1266	12	151.0	1400	180	1200
