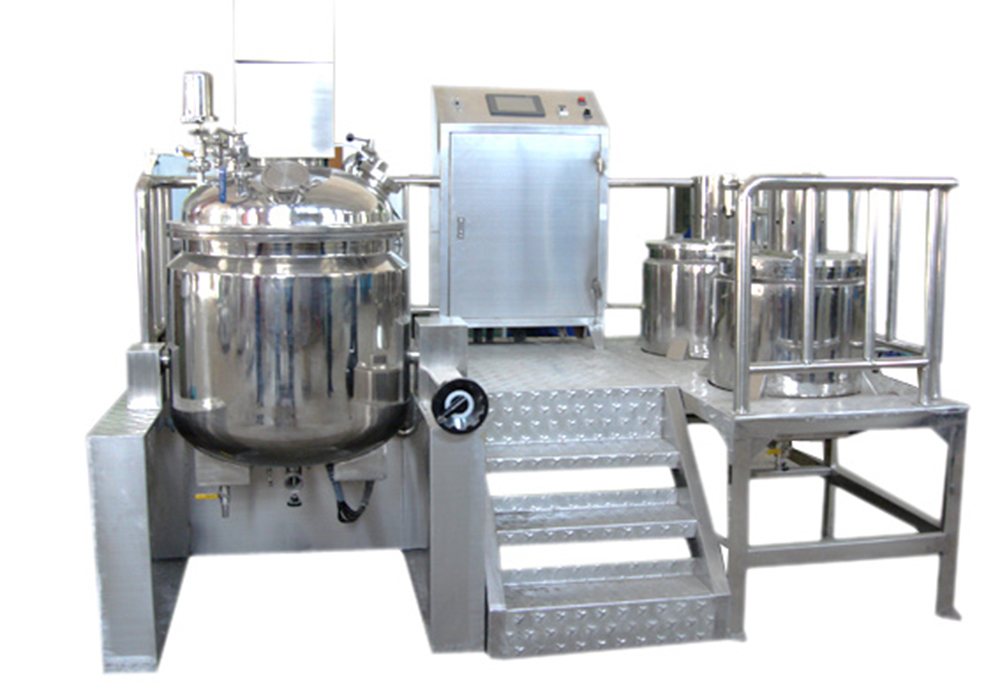

The vacuum homogenizer is highly non-standard and can be reasonably configured according to the customer's process. It is suitable for products that need to be emulsified and stirred under vacuum. It can easily be used with low-speed scraping wall stirring for emulsification and stirring of high viscosity products. It can be equipped with high shear emulsion machine, which is suitable for dispersion, emulsification, homogenization, mixing and other processes. Following systems are optional according to requirement: Batching System, Discharging System, Cooling/Heating Temperature Control System, Vacuum System, Nitrogen Protection System, Condensation and Recovery System, PH Value On-line Measurement and Control System, CIP Cleaning System etc. It is with wide application range and the processes are controllable. It can be up to Sanitary Grade at request for mid batch or industrial production in industries such as medicine, food, cosmetic,etc.

Working Principle

Precision-engineered stator and rotor match with each other perfectly. High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.

Technical Parameters

Product Application

It is suitable for dispersing, emulsifying and homogenizing the materials in the field of biology, medicine, food, coating, printing ink, textile auxiliary, pesticide, cosmetics, lubricating oil, pesticide and so on.

Applicable fields：Other fine chemical industry , Biology/Medicine  , Ink/dye  , Coating
