The high-shear emulsifier is a continuous production type emulsifier with high efficiency. It processes materials in continuous production or circulation of fine materials. The motor drives the rotor to rotate at high speed. It narrows the particle size of Liquid-liquid and liquid-solid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. It can be equipped with materials transfer pump in front of it to make it suitable for materials with mid-and-high viscosity. The materials are thoroughly dispersed and sheared after going through it. It is characterized in low noise and stable running, short transfer distance and low head.

Working Principle

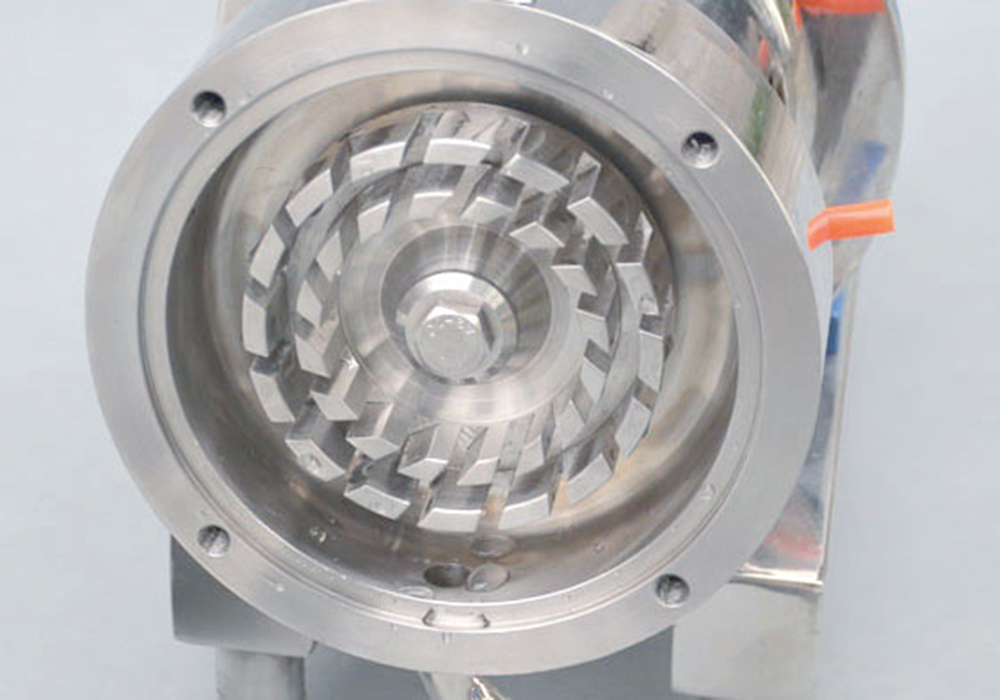

The single-stage high shear emulsification machine adopts horizontal structure. A group of rotor and stator are installed in a long and narrow working chamber. The rotor and stator can be designed as a single-stage two-layer or single-stage six layer mechanism. The rotor and stator are dual coupled and highly matched. The motor drives the intermediate shaft to run at a high speed. The rotor stator forms a vacuum. The material is sucked into the rotor stator cavity from the inlet. The powerful kinetic energy causes the rotor to generate a very high linear speed, which makes the material fly out after a strong impact, crushing, centrifugation, liquid layer friction, and strong shear between the rotor and the stator. Under the action of various directional forces, strong turbulence is generated, and the material flows out of the outlet. Multiple cycle operations are possible.

Technical Parameters

Product Application

It is suitable for emulsification, homogeneity and dispersion of industrial materials, such as biology, medicine, food, cosmetics, inks and pesticides.

Applicable fields：Other fine chemical industry  , Ink/dye  , Electronic chemicals, Pesticides , Coating
