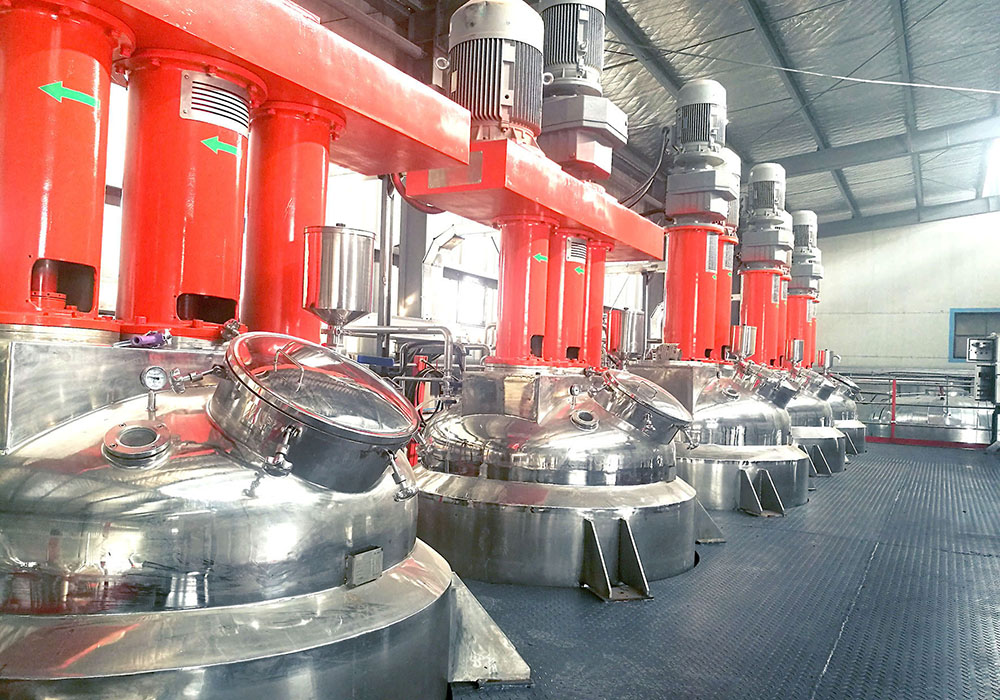

According to the requirements of the users, NOVA can customize the reaction vessels and complete set of equipment, mainly including: epoxy resin, acrylic resin, phenolic resin, polyurethane as well as various water-based emulsion equipment. When we provides single - machine and complete production line, the automatic control of temperature, pressure, mono-case and auxiliaries will be realized according to the specific process requirements of the customer. According to the characteristics and process of different materials, we will select the suitable heating, cooling way and proper mixing method to ensure the effective control of the reaction process and realize the maximum conversion efficiency.

Product characteristics:

1. Vacuum feeding, safe and convenient;

2. The temperature control system is stable and reliable;

3. The automatic control system is executed precisely according to the process requirements;

4. The main reactor is made in strict accordance with national standards, safe and reliable.

Working Principle

Driven by the power unit, the agitator (dispersion plate, paddle, anchor, frame and other mixing forms) rotates in a fixed direction. In the process of rotation, the material is driven to rotate axially and radially. The materials in the container have both axial and circular motions, so there are several forms of mixing, such as shear mixing and diffusion mixing. It can effectively stir and mix materials quickly. The dispersing disc runs at high speed, which causes the material to flow in a circular flow and results in a strong vortex. The material spirals down to the bottom of the vortex. There is a strong shear impact and friction between particles to achieve rapid dispersion and dissolution. The mixing plate can produce better radial force through circular movement, accelerate the material circulation and improve the dispersion efficiency. Precision processing technology of emulsified head, highly matching between rotor and stator. The powerful motor rotates at high speed to form a vacuum between the rotor and stator, and the materials are sucked from the upper and bottom of the rotor and stator. Powerful kinetic energy causes the rotor to produce extremely high linear velocity and the material is sent out after a strong collision, crushing, centrifugal extrusion, liquid layer friction and strong shear. Under the action of force in many different directions, the material produces a powerful turbulence. After a certain amount of emulsifying machine and mature process, the material can be dissolved, dispersed, homogenized, refined and sheared to produce stable emulsion.

Applicable field: Other fine chemical industry, Resin/Auxiliaries
