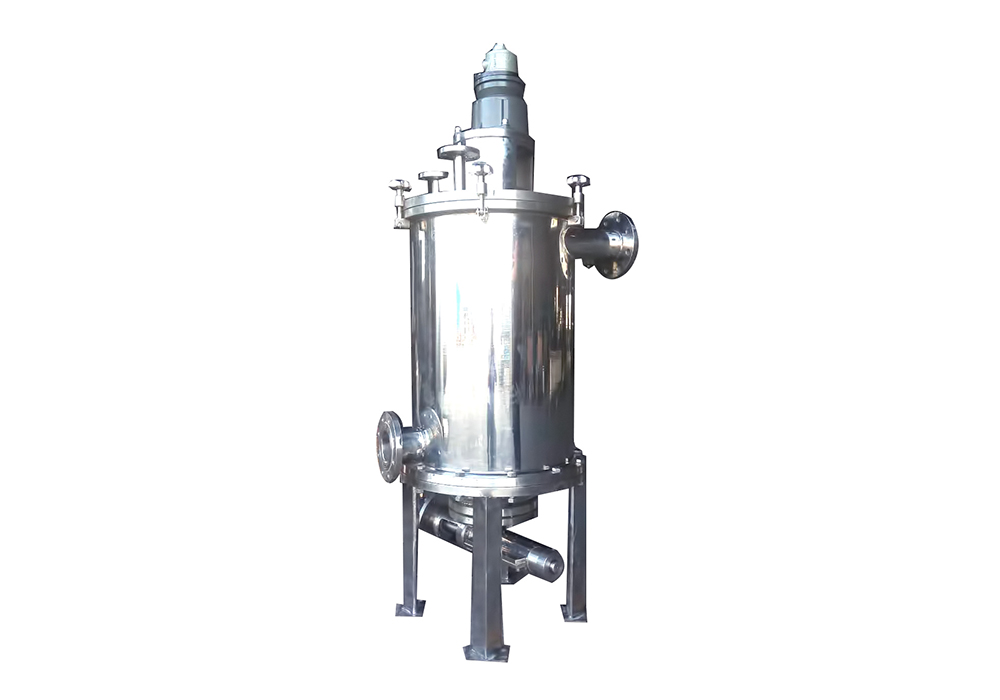

The intelligent filtering and slag removal system includes a movable platform, stainless steel with scraping wall filter, pneumatic diaphragm pump, air source duplex, single acting air control valve, slag removal components, etc., which has the function of filtering and slag removal integration.

Product Characteristics

1. High filtration efficiency;

2. Consistent operation, permanent continuous operation;

3. Save manpower;

4. The filter precision range is optional;

5. Environmental protection, eliminating the solid waste brought by the filter bag and the liquid waste brought by the cleaning;

6. Multi barrel, large flow and efficient filtration, fully automatic electrical control system and PLC can be selected;

7. Simple structure, easy disassembly and internal cleaning;

8. Safe, reliable and stable operation;

9. Reduce production cost, and do not consume disposable materials;

10. The filter residue can be used as combustion energy for secondary recycling.

Working Principle

When materials are imported from the import, the qualified materials are filtered through a metal wedge filter with a large filtration area. The pump sends the material to  the next step for product filling. The scraper equipped on the agitator rotates on the surface of the screen and scrapes off the impurity. The impurities follow the descending liquid into the screw cavity. In the slag removal system, the screw is rotated to extrude dry slag (the extruded slag is continuous solid), and the filtered filtrate is incorporated into the feed inlet through the pump. Then it will realize circulating filtration.

Applicable fields：其他精细化工行业Other fine chemical industry
