The liquid filling machine accurately packs a large amount of bulk liquid materials into various containers, iron drums or plastic drums by weight, and is used for automatic quantitative filling of 200L drums. Widely used in industries related to liquid materials such as chemicals and pesticides, and in products such as coatings, paints, inks, adhesives, curing agents, resins, dyes, cleaning agents, engine oil, glycerin, lubricants, edible oils, essence, solvents, additives, chemical additives, pesticides and other dangerous chemical products.

Product Characteristics

Data statistics - Including weight accumulation and frequency accumulation, which can be connected to the computer to realize data management (optional);

Multistage filling - The filling can be divided into the type of two parts (fast/slow) or three parts(slow/fast/slow), greatly improving the filling accuracy.

Throttle device - It effectively prevents spatter caused by high initial pressure of pump when filling low viscosity products.

Drip protection - The high viscosity spray gun solves the leakage phenomenon of high viscosity product filling, and the low viscosity spray gun is equipped with automatic drip cup and gas cap device.

Bump barrels protection - It avoids the damage caused by the barrel was not aligned when the gun dropped.

Quick replacement - The interfaces in the connection of the conveying pipeline are all quick interfaces, which are convenient for quick replacement of the spray gun.

Filling nozzle - Different filling nozzles can be changed conveniently according to different diameter of container.

Automatic hole drilling - There are many eccentric holes in the filling port of the round container. This technology can solve the inconvenience of manual hole drilling.

Filling mode - The filling mode design can be used in filling on the barrel hole, filling in the barrel hole and filling under the liquid. The user can control the speed of the spray gun to be suitable for the products of different foam levels (optional).

Easy operation - The filling system is easy to learn and operate.

Flexible design - We provide various kinds of equipment and accessories according to the material’s characteristics at the scene and container’s size.

Easy installation - As long as the device is fixed on the ground with the expansion bolt and connects the material pipe, power source and air source, the filling can be started.

Working Principle

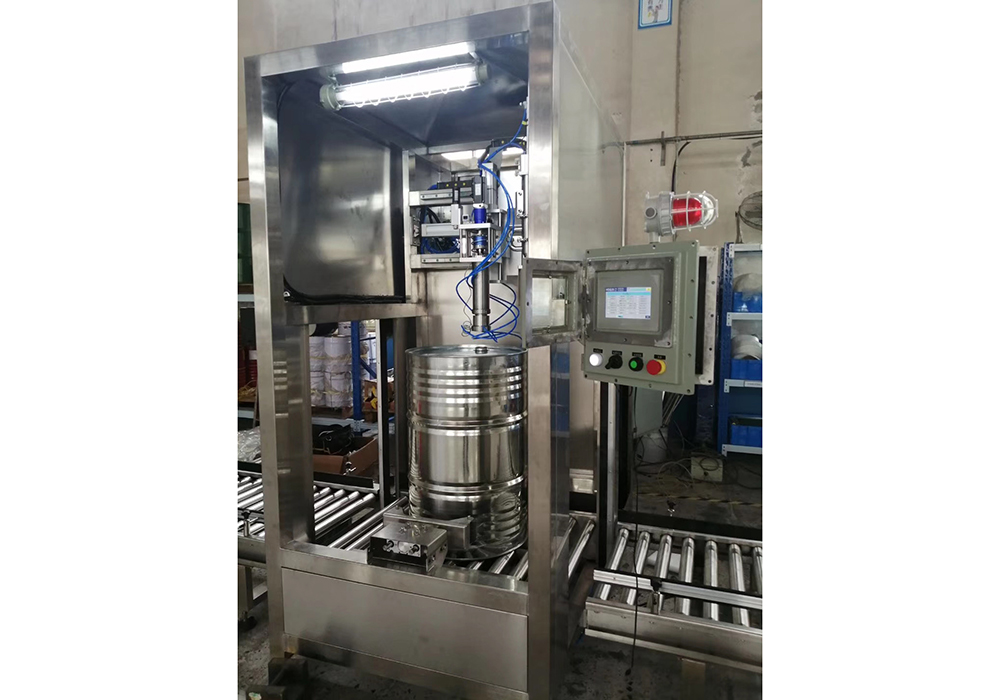

NBGZ-200 is a semi-automatic liquid filling machine. The product adopts the type of filling above the liquid or under the liquid. The design of unique spray gun is easy to operate. filling is fast and accurate. It minimizes the leakage of the residual liquid at the end of perfusion. During filling, the operator simply moves the container, makes the filling mouth of the container align with the nozzle head and press the "Start" button, the nozzle automatically drops, the empty barrel automatically peels, and then accurately fills at two speeds to ensure the filling accuracy. After filling, the spray gun will automatically lift, remove the full barrel, and one filling cycle will end.

Technical Parameters
