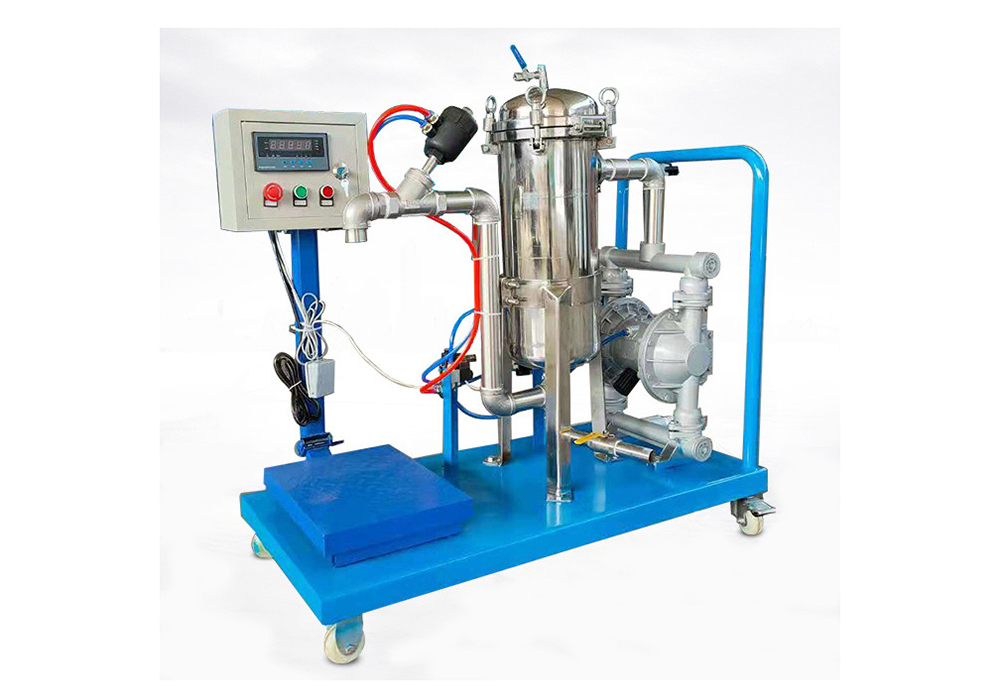

Filter cart consists of a stainless steel bag type filter, a pneumatic diaphragm pump, air filter and oil lubricator, single air control valve, and all the components are on the cart. It can be removed to any place of the production line. Bag-type Filtrating system is a new type filtrating system. Liquid flows into filtering bag inside supported by metal net basket from inlet, and comes out from the outlet of filtering bag. Impurities are left on the bags and the machine can be continually used by replacing bags. The bag-type filter is mainly used of coarse filtration. A pressure gauge is equipped for reminding the bag replacement when the pressure is too high.

Product Characteristics

1.The filtration is uniform and delicate;

2.Simple structure and easy to operate;

3.Internal and external surface are mirror polished and easy to clean;

4.It is equipped with diaphragm pump and discharge valve.

Working Principle

Filter cart consists of a stainless steel bag type filter, a pneumatic diaphragm pump, air filter and oil lubricator, single air control valve, all the components are on a stainless steel trolley. Pneumatic diaphragm pump sucks the raw materials from tank or vessel to the filter shell and goes into the filter though the inlet at the side of shell. The filtrated materials are pumped into filling machine to be packed or storage tanks. Bag-type Filter, a pressure type filter, mainly consists of filter shell, filter shell cover and quick-open structure, stainless steel filtration bag with strengthened net etc. Liquid goes into the filter through the inlet on the side of the device shell. The filter bag itself is in the strengthened net basket, qualified liquid can be obtained after going through the filter bag with required filtration level because all the impurity particles are blocked by the filter bag during this process. Stainless steel removable cart is easy to move due to its universal wheels. No sparks during operation so that it can work during ex-proof surroundings.

Technical Parameters

Product Application

It is widely used in water treatment, paper making, automobile industry, petrochemical industry, fine chemical industry, coating, printing ink, electronic, mechanical processing, etc.

Applicable fields：Other fine chemical industry , Ink/dye  , Coating
