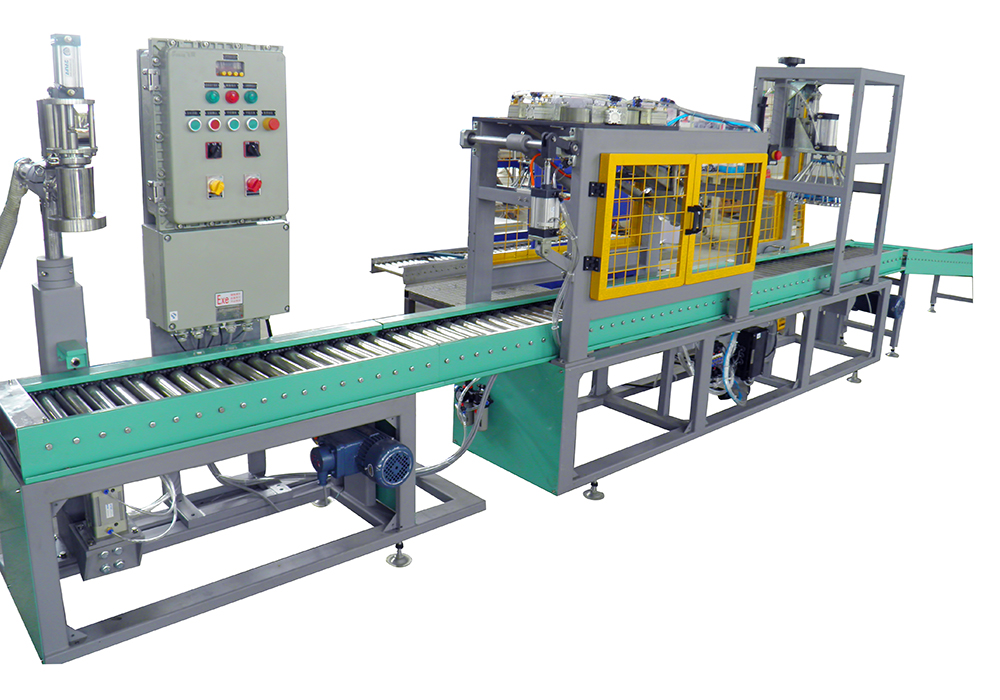

The liquid filling machine is used for automatic quantitative filling of 5L~30L drums by accurately packing a large amount of bulk liquid materials into various containers, iron drums or plastic drums by weight. It is widely used in chemical industry, pesticide and other liquid material related industries and also used in coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products and other products.

Product Characteristics

Product settings - Store up to 10 different product weight settings and related filling parameters;

Data statistics - Including weight accumulation and frequency accumulation, which can be connected to the computer to realize data management (optional);

Multistage filling - The filling can be divided into the type of two parts (fast/slow) or three parts(slow/fast/slow), greatly improving the filling accuracy.

Throttle device - It effectively prevents spatter caused by high initial pressure of pump when filling low viscosity products.

Drip protection - The high viscosity spray gun solves the leakage phenomenon of high viscosity product filling, and the low viscosity spray gun is equipped with automatic drip cup and gas cap device.

Bump barrels protection - It avoids the damage caused by the barrel was not aligned when the gun dropped.

Quick replacement - The interfaces in the connection of the conveying pipeline are all quick interfaces, which are convenient for quick replacement of the spray gun.

Filling nozzle - Different filling nozzles can be changed conveniently according to different diameter of container.

Automatic hole drilling - There are many eccentric holes in the filling port of the round container. This technology can solve the inconvenience of manual hole drilling.

Filling mode - The filling mode design can be used in filling on the barrel hole, filling in the barrel hole and filling under the liquid. The user can control the speed of the spray gun to be suitable for the products of different foam levels (optional).

Easy operation - The filling system is easy to learn and operate.

Flexible design - We provide various kinds of equipment and accessories according to the material’s characteristics at the scene and container’s size.

Easy installation - As long as the device is fixed on the ground with the expansion bolt and connects the material pipe, power source and air source, the filling can be started.

Working Principle

1. Fully automatic barrel sorting and picking equipment is adopted to accelerate the conveying speed.

2. The automatic filling device is equipped with an automatic metering device, which will directly fill the materials into the delivered packaging barrel through the quantity set by the filling nozzle according to the preset standard. The whole process is accurate and fast, which will not cause waste of materials and environmental pollution. After the barrel is loaded, it will be transmitted to the next link through the power rail.

3. Automatic cover management, upper cover and sealing one by one. The filled barrels are accurately sent to the automatic capping machine. The capping machine absorbs one end each time through the manipulator and places it on the filled barrels accurately. The automatic capping machine immediately cooperates with the action to squeeze the end accurately and seal the filled barrels.

4. Automatic stacking, placing pallets. The filling drum packaged by sealing is passed to the automatic stacker. The automatic stacker, through the professional manipulator, accurately absorbs and places the filled container into the set tray. When the number of paint buckets in the tray reaches the specified number, the manipulator will automatically transport the pallet to the designated position.

Technical Parameters

Technical Parameters

Oil and chemical raw materials, lubricating oil, grease, paint, ink, paint, glue, asphalt, washing liquid, cleaning agent, etc.

Applicable fields：Other fine chemical industry, Ink/dye
